Rig 1 · 2,000hp
Trailblazer
Drilling over 47 wells since 2012, Trailblazer is a 2,000hp rig with its latest API Category IV inspection in 2023.
Highlight — 47+ wells since 2012
Latest inspection — API Category IV (2023)
Technical specifications
Manufacturer
Applied Machinery Corporation, built 2012
Nominal Vertical Depth Rating
21,000 ft / 6,400 m
Hook Load Capacity
1,000,000 lbs
Mast
Cantilevered, 142 ft / 43.3 m
Drawworks
National Oilwell Varco E2000, 2× 1000hp DC motors, 2,000hp total
Top Drive
TESCO HCIS Integrated Swivel, 650 ton, 52,800 ft-lb torque
Mud Pumps
3× 1600hp, powered by 4× Caterpillar 3512 generator sets
On the rig floor

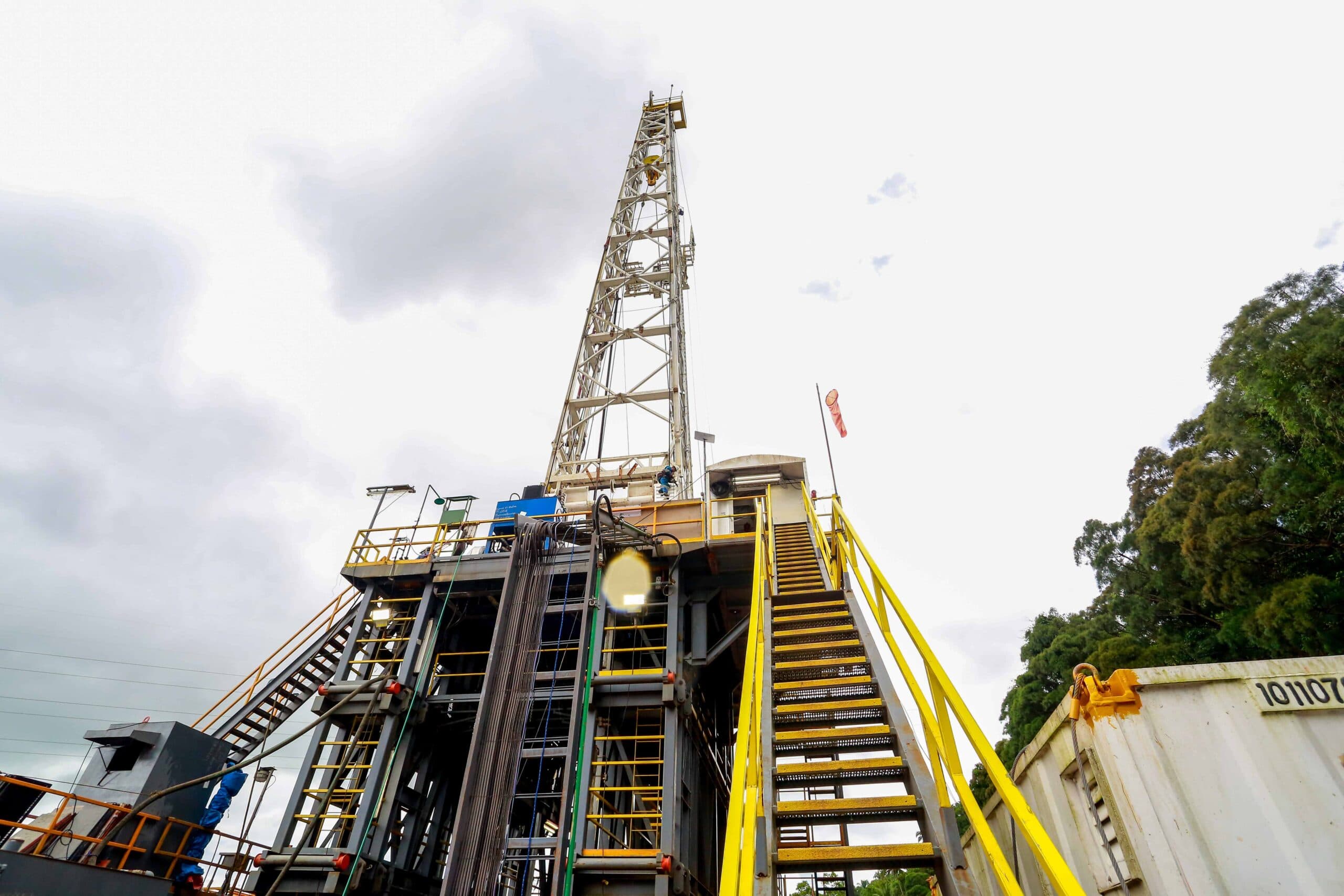

Rig floor overview

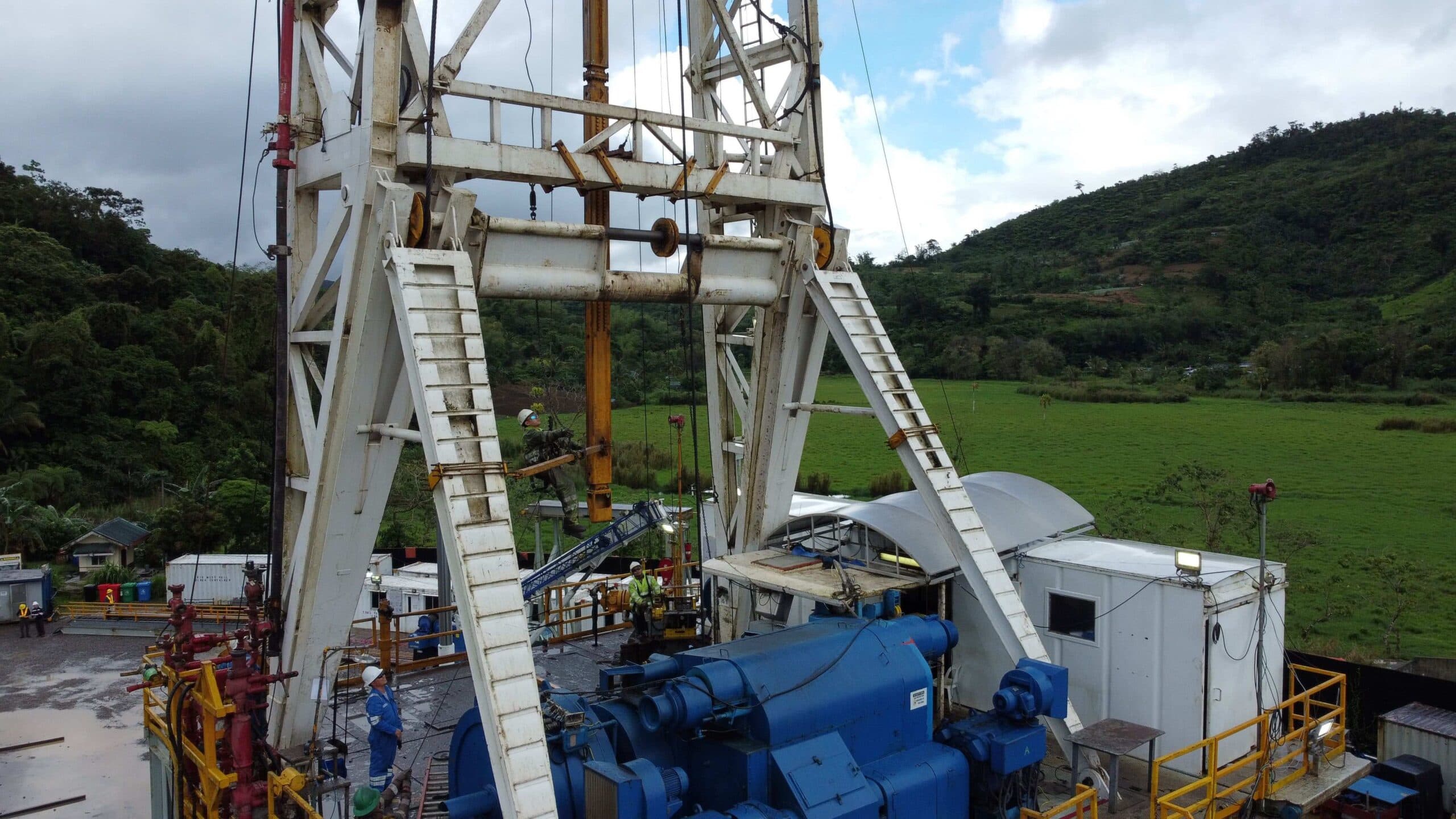

A-frame & dog house

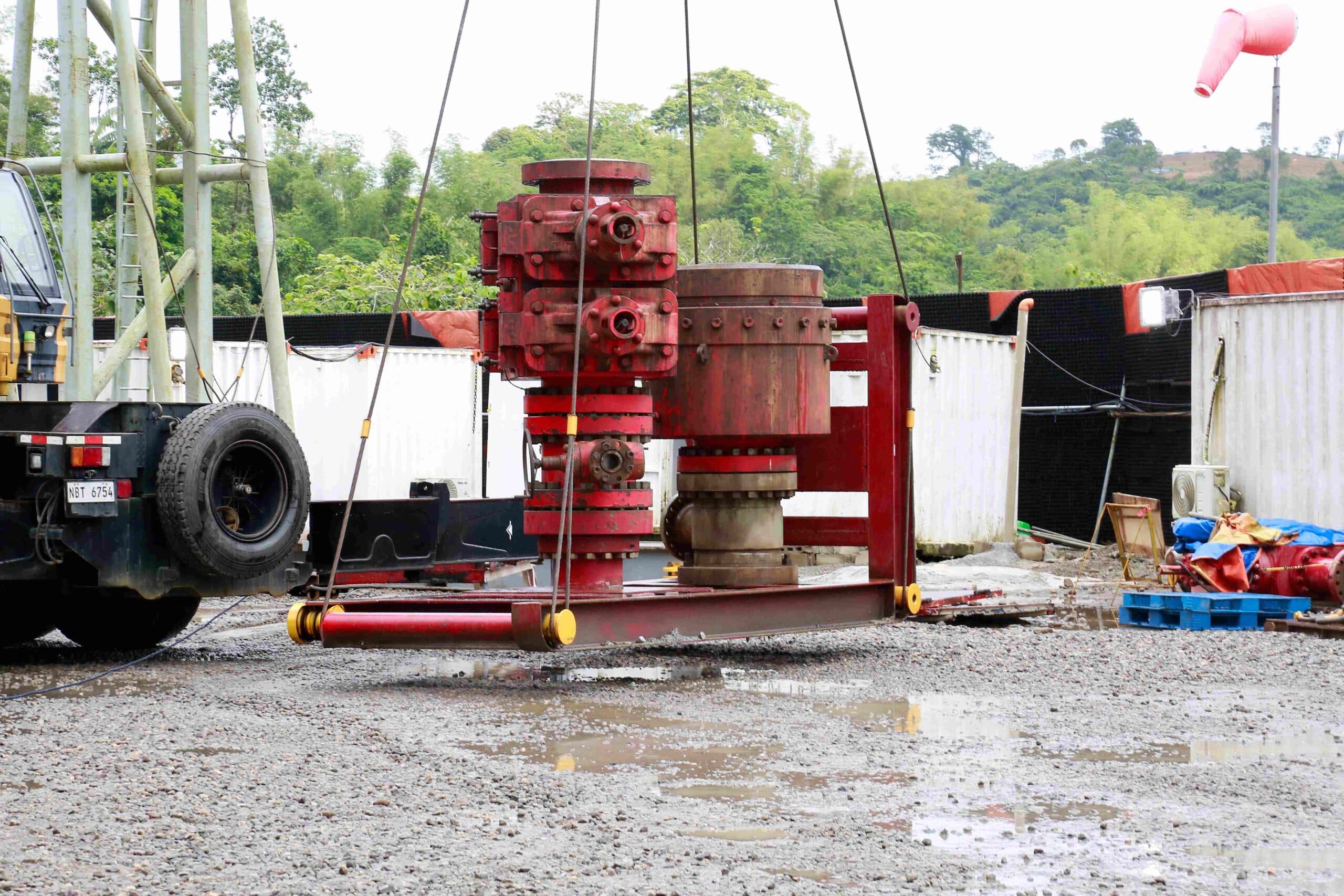

BOP & test stump

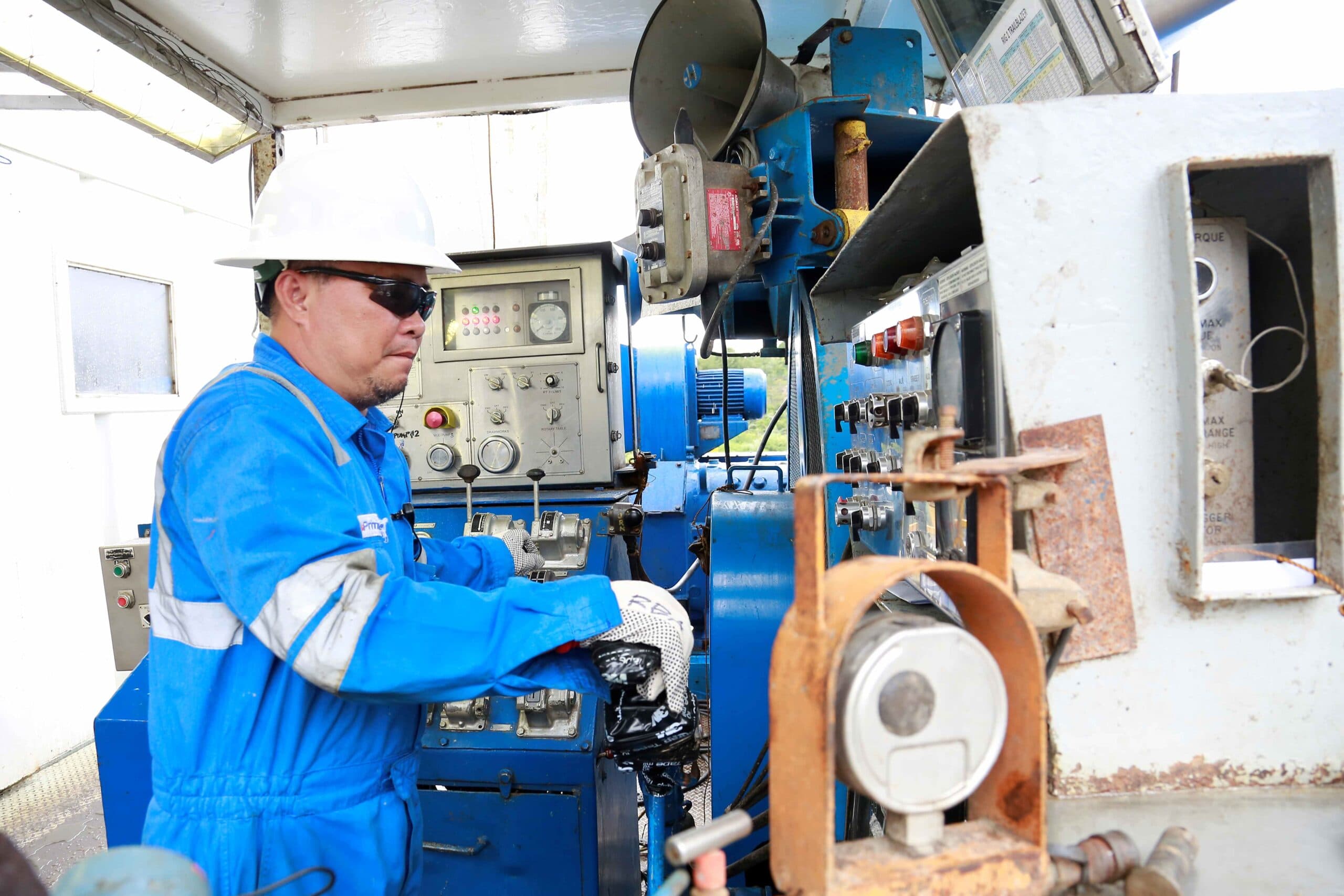

Driller's console

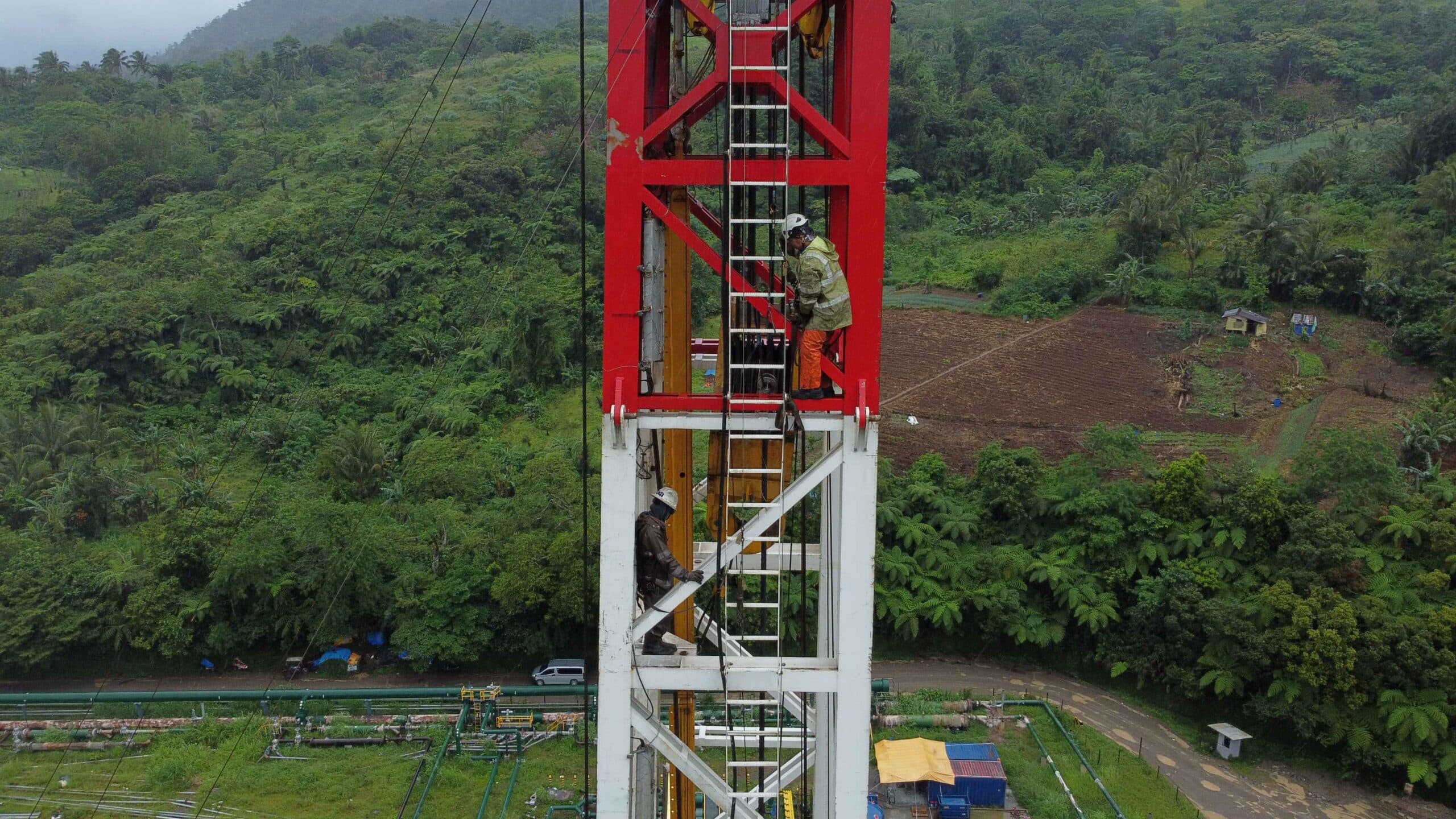

Derrickman at work

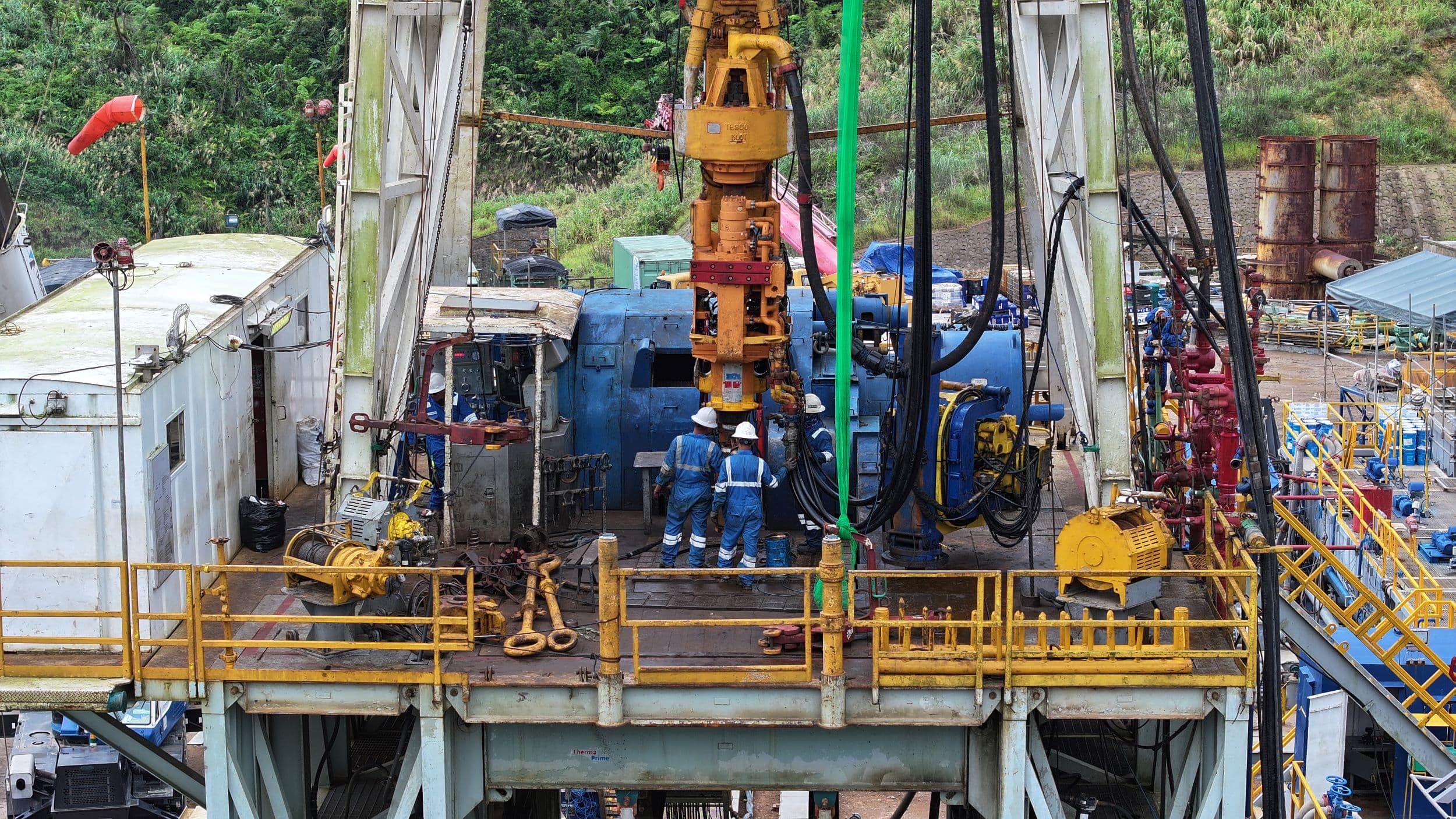

Top drive system & rig floor
